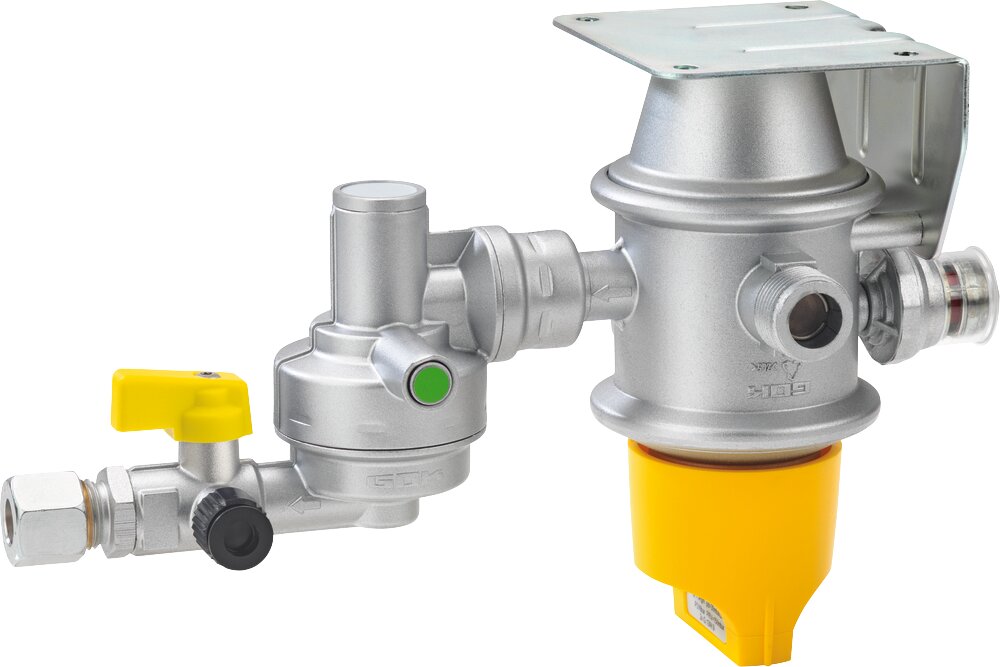

Safety gas pressure regulation system with automatic changeover valve for operating two-cylinder systems in caravans and motorhomes while driving, for connection to gas cylinders using a high-pressure hose line, for regulating the pressure to the nominal pressure of the gas appliance.
Consisting of:
- Automatic changeover valve, low pressure regulator with safety relief valve PRV
- Mechanical crash sensor with new pendulum solution
- Operating and reserve indicator
- Gas non-return valve
- Test device and wall bracket
- Control knob
Heating while driving thanks to mechanical crash sensor with new pendulum solution
- Faster and simpler commissioning and reset after response
- More precise operation and therefore fewer malfunctions due to incorrect response behavior
- Automatic switchover to the gas cylinder on the reserve side as soon as the gas cylinder on the operating side is empty
- Cylinder can be changed without interrupting operation
- Gas non-return safety device: prevents the gas flow from leaking when changing cylinders
- Even gas supply thanks to optimum utilization of the gas cylinder content
- Indication of which gas cylinder is being used
- Can be used throughout Europe thanks to the use of country-specific high-pressure hose lines -
Caramatic ConnectDrive (not included in the scope of delivery)
- Test device for leak testing the LPG system without dismantling the pressure regulation device
- Version with outlet connection RVS 10 / 8 is equipped as standard with a transition piece for connection to 8 mm pipes
- Maximum permissible pressure: PS 16 bar
- Suitable for the connection of an Eis-Ex
- Suitable for the connection of a remote display
Conformity: EU type-examination certificate DGR, EU type-examination certificate GGV
